Cone search demo#

This notebook walks through performing a cone search of the pixels in a HiPSCat catalog. This shows strategies for visualizing a catalog’s partitions, and using hipscat’s spatial metadata to improve performance in targeted queries.

[1]:

import hipscat
import healpy as hp
import numpy as np

## Fill in these variables with what's relevant in your use case:

### Change this path!!!
catalog_path = "../../tests/data/small_sky_order1"

ra = 0  # degrees
dec = -80  # degrees
radius_degrees = 10  # degrees

[2]:

## Load catalog

catalog = hipscat.read_from_hipscat(catalog_path)

[3]:

## Plot catalog pixels

hipscat.inspection.plot_pixels(catalog)

../_images/notebooks_cone_search_3_0.png

[4]:

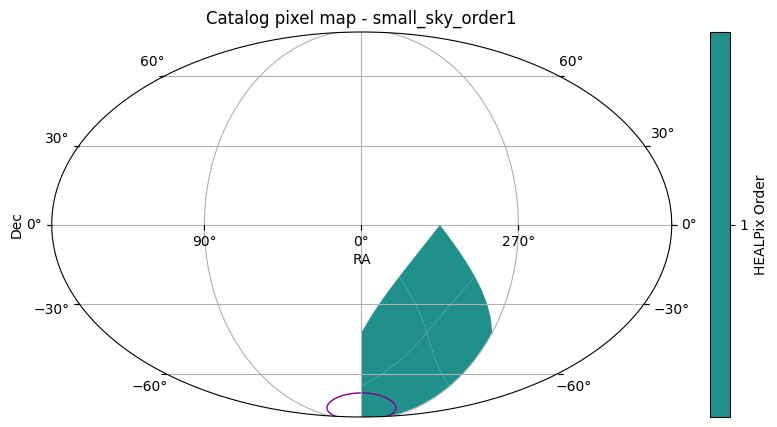

## Plot the cone using healpy for demonstration

NSIDE = 256
NPIX = hp.nside2npix(NSIDE)
m = np.zeros(NPIX)
center_vec = hp.ang2vec(ra, dec, lonlat=True)
radius_radians = np.radians(radius_degrees)
cone_pixels = hp.query_disc(NSIDE, center_vec, radius_radians)
m[cone_pixels] = 1
hp.mollview(m, title="Cone to search")

../_images/notebooks_cone_search_4_0.png

[5]:

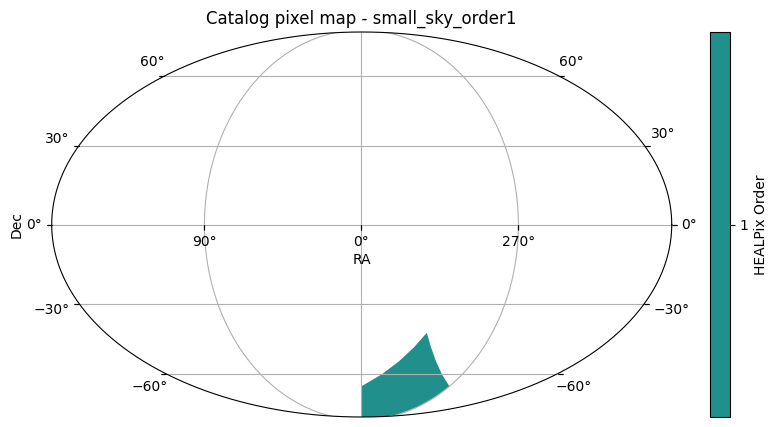

## Filter catalog and plot filtered pixels

radius_arcseconds = radius_degrees * 3600
filtered_catalog = catalog.filter_by_cone(ra, dec, radius_arcseconds)

hipscat.inspection.plot_pixels(filtered_catalog)
